ArcObjects Library Reference (Geometry)

IConstructMultiPatch.ConstructExtrudeAbsolute Method

Construct a MultiPatch by extruding a (non-point) geometry using its initial Zs for one base, and a uniform input Z for the other.

[Visual Basic .NET]
Public Sub ConstructExtrudeAbsolute ( _
    ByVal toZ As Double, _
    ByVal baseGeom As IGeometry _
)
[C#]
public void ConstructExtrudeAbsolute (
    double toZ,
    IGeometry baseGeom
);
[C++]
HRESULT ConstructExtrudeAbsolute(
  double toZ,
  IGeometry* baseGeom
);
[C++]

Parameters

toZ
  toZ is a parameter of type double
baseGeom

  baseGeom is a parameter of type IGeometry

Product Availability

Available with ArcGIS Engine, ArcGIS Desktop, and ArcGIS Server.

Description

Creates a MultiPatch from a base non-point geometry by extruding the base geometry along the Z-axis from the base geometry to a given absolute Z plane.  The base Z value of the geometry is preserved and top Z value is uniformly equal to the input absolute Z.  The resulting extrusion is always parallel to the XY-plane on the top and only parallel at the base if the base geometry is parallel to the XY-plane.

Remarks

All non-linear segments are treated as linear segments when extrusion is performed.  Only Polylines, Polygons, and Envelopes are allowed as input geometries.

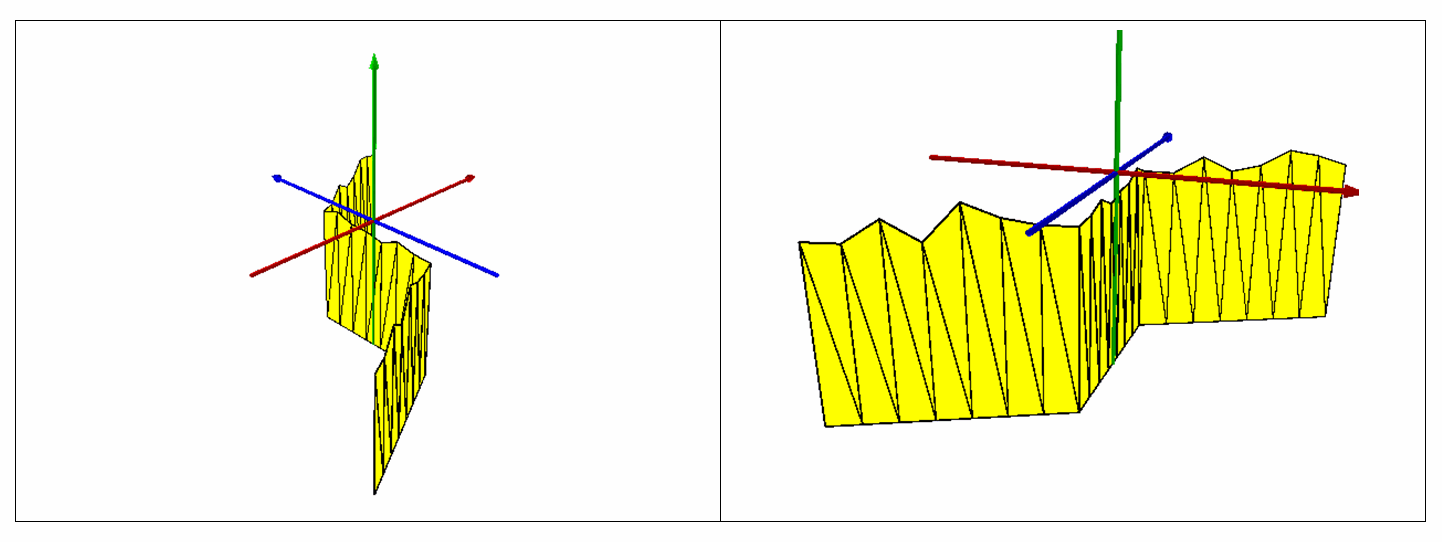

ConstructMultiPatch ExtrudeAbsolute Example

[C#]

        private static object _missing = Type.Missing;

        public static IGeometry GetMultiPatchGeometry()

        {

            const int DensificationDivisions = 20;

            const double MaxDeviation = 0.1;

            const double BaseZ = 0;

            const double ToZ = -10;



            //Extrusion: 3D Polyline Having Vertices With Varying Z Values, Extruded To Specified Z Value

            //           Via ConstructExtrudeAbsolute()



            IPointCollection polylinePointCollection = new PolylineClass();



            polylinePointCollection.AddPoint(ConstructPoint2D(-10, -10), ref _missing, ref _missing);

            polylinePointCollection.AddPoint(ConstructPoint2D(0, -5), ref _missing, ref _missing);

            polylinePointCollection.AddPoint(ConstructPoint2D(0, 5), ref _missing, ref _missing);

            polylinePointCollection.AddPoint(ConstructPoint2D(10, 10), ref _missing, ref _missing);



            IPolyline polyline = polylinePointCollection as IPolyline;

            polyline.Densify(polyline.Length / DensificationDivisions, MaxDeviation);



            IGeometry polylineGeometry = polyline as IGeometry;



            MakeZAware(polylineGeometry);



            Random random = new Random();



            for (int i = 0; i < polylinePointCollection.PointCount; i++)

            {

                IPoint polylinePoint = polylinePointCollection.get_Point(i);



                polylinePointCollection.UpdatePoint(i, ConstructPoint3D(polylinePoint.X, polylinePoint.Y, BaseZ - 2 * Math.Sin(random.NextDouble())));

            }



            ITopologicalOperator topologicalOperator = polylineGeometry as ITopologicalOperator;

            topologicalOperator.Simplify();



            IConstructMultiPatch constructMultiPatch = new MultiPatchClass();

            constructMultiPatch.ConstructExtrudeAbsolute(ToZ, polylineGeometry);



            return constructMultiPatch as IGeometry;

        }



        public static IPoint ConstructPoint2D(double x, double y)

        {

            IPoint point = new PointClass();

            point.PutCoords(x, y);



            return point;

        }

        private static void MakeZAware(IGeometry geometry)

        {

            IZAware zAware = geometry as IZAware;

            zAware.ZAware = true;

        }
