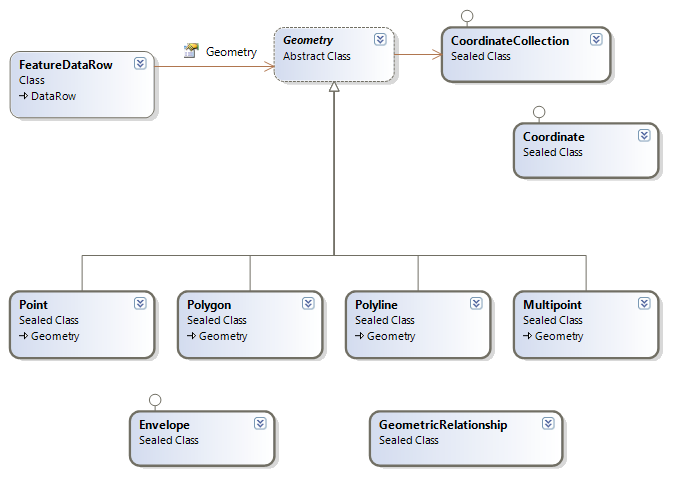

Class Diagram of the ESRI.ArcGIS.Mobile.Geometries namespace


The Geometries namespace contains the classes used to represent feature shapes.



Go to the FeatureCaching Diagram Contains properties and behavior common to all geometric objects. Collection of Coordinate objects. Represents a location defined by an X and Y value using current spatial reference. A rectangle defining the extent of another geometry by its locations and size, with sides parallel to the coordinate system. Two-dimensional location. A geometry representing an ordered sequence of points which describe a closed figure. An ordered collection of coordinates representing a multi-part line. An ordered collection of points. Provides access to members that determine if a certain spatial relationship exists between two geometries.
