Indicator interface that identifies a triangle strip.
Product Availability
Available with ArcGIS Engine, ArcGIS Desktop, and ArcGIS Server.
Description

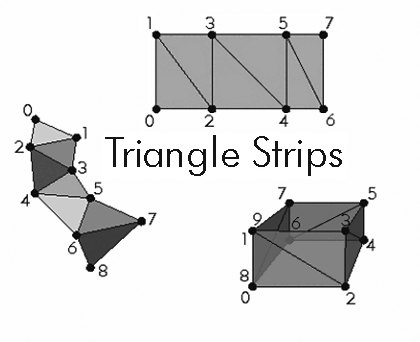

A TriangleStrip is a type of surface patch used to construct a MultiPatch, defined by a collection of Points that specify the triangle surfaces that comprise it. For a TriangleStrip with six points, the triangle surfaces are defined by points: (0, 1, 2), (2, 1, 3), (2, 3, 4), (4, 3, 5). The front side is established by orienting the first three vertices clockwise.
Inherited Interfaces
| Interfaces | Description |
|---|---|
| IGeometry | Provides access to members that describe properties and behavior of all geometric objects. |
CoClasses that implement ITriangleStrip
| CoClasses and Classes | Description |
|---|---|
| TriangleStrip | A continuous 3D strip of triangles, where each triangle after the first shares an edge with the preceding triangle. |
Remarks
