ArcObjects Library Reference (Geometry)

ICurve3D.GetSubcurve3D Method

Extracts a portion of this curve into a new curve.

[Visual Basic .NET]
Public Sub GetSubcurve3D ( _
    ByVal fromDistance As Double, _
    ByVal toDistance As Double, _
    ByVal bAsRatio As Boolean, _
    ByRef ppOutSubCurve As ICurve3D _
)
[C#]
public void GetSubcurve3D (
    double fromDistance,
    double toDistance,
    bool bAsRatio,
    ref ICurve3D ppOutSubCurve
);
[C++]
HRESULT GetSubcurve3D(
  double fromDistance,
  double toDistance,
  VARIANT_BOOL bAsRatio,
  ICurve3D** ppOutSubCurve
);
[C++]

Parameters

fromDistance   fromDistance is a parameter of type double toDistance   toDistance is a parameter of type double bAsRatio   bAsRatio is a parameter of type VARIANT_BOOL ppOutSubCurve [out]

  ppOutSubCurve is a parameter of type ICurve3D

Product Availability

Available with ArcGIS Engine, ArcGIS Desktop, and ArcGIS Server.

Description

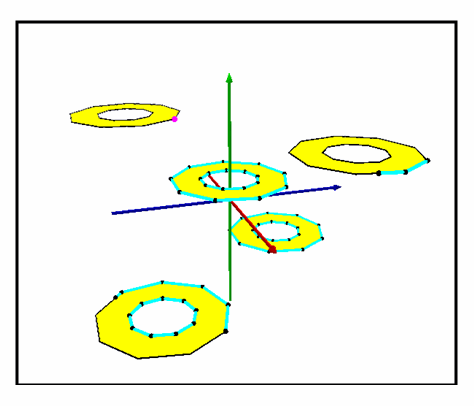

Gets the subcurve between the specified points along the original curve and creates a new curve. The elements in the new subcurve are the same type and have the same properties as the elements of the original curve.

[C#]



        public static void GetSubcurve3D()

        {

               const double FromDistance = 0.27;

               const double ToDistance = 0.823;



               IGeometry polygonGeometry = GetPolygonGeometry();



               IPointCollection pointCollection =
                      polygonGeometry
as IPointCollection;



               IPoint firstPoint = pointCollection.get_Point(0);



               ICurve3D curve3D = polygonGeometry as ICurve3D;



               ICurve3D subcurve3D;



               curve3D.GetSubcurve3D(
                      FromDistance, ToDistance, true, out subcurve3D
               );

        }

See Also

ICurve3D Interface
