ArcObjects Library Reference (Geometry)

IArea3D.LabelPoint3D Property

A point guaranteed to be on this 3D surface area.

[Visual Basic .NET]
Public ReadOnly Property LabelPoint3D As IPoint
[C#]
public IPoint LabelPoint3D {get;}
[C++]
HRESULT get_LabelPoint3D(
  IPoint** LabelPoint
);
[C++]

Parameters

LabelPoint [out, retval]

  LabelPoint is a parameter of type IPoint

Product Availability

Available with ArcGIS Engine, ArcGIS Desktop, and ArcGIS Server.
[C#]

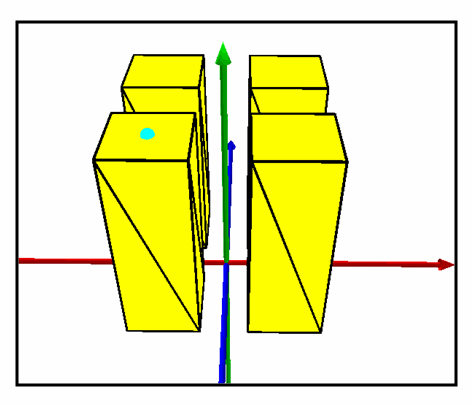

        public static void GetLabelPoint3D()

        {

               IGeometry multiPatchGeometry = GetMultiPatchGeometry();

               IArea3D area3D = multiPatchGeometry as IArea3D;

               IPoint labelPoint3D = area3D.LabelPoint3D;

               //labelPoint3D = (-2.5, -2.5, 8.5)
        }



See Also

IArea3D Interface
