ArcObjects Library Reference (Geometry)

IMultiPatch.PutRingType Method

Defines the type of the input Ring.

[Visual Basic .NET]
Public Sub PutRingType ( _
    ByVal queryRing As IRing, _
    ByVal ringType As esriMultiPatchRingType _
)
[C#]
public void PutRingType (
    IRing queryRing,
    esriMultiPatchRingType ringType
);
[C++]
HRESULT PutRingType(
  IRing* queryRing,
  esriMultiPatchRingType ringType
);
[C++]

Parameters

queryRing

  queryRing is a parameter of type IRing

ringType

  ringType is a parameter of type esriMultiPatchRingType

Product Availability

Available with ArcGIS Engine, ArcGIS Desktop, and ArcGIS Server.

Remarks



IMultiPatch PutRingType Example

[C#]



        private static object _missing = Type.Missing;



        public static void QueryMultiPatchRings()

        {

            const esriMultiPatchRingType DesiredRingTypeMask = esriMultiPatchRingType.esriMultiPatchBeginningRingMask;



            IGeometryBridge geometryBridge = new GeometryEnvironmentClass();



            IMultiPatch multiPatch = GetMultiPatchGeometry() as IMultiPatch;



            int beginningRingCount = multiPatch.get_BeginningRingCount((int)DesiredRingTypeMask);

            Trace.WriteLine("BeginningRingCount = " + beginningRingCount);



            IRing[] beginningRingArray = new IRing[beginningRingCount];



            geometryBridge.QueryBeginningRings(multiPatch, (int)DesiredRingTypeMask, ref beginningRingArray);



            for (int i = 0; i < beginningRingArray.Length; i++)

            {

                IRing beginningRing = beginningRingArray[i];

                Trace.WriteLine("BeginningRing[" + i + "].MultiPatchRingType = " + GetMultiPatchRingType(multiPatch, beginningRing));

                Trace.WriteLine("BeginningRing[" + i + "].IsBeginningRing = " + IsBeginningRing(multiPatch, beginningRing));

                Trace.WriteLine("BeginningRing[" + i + "].Length = " + beginningRing.Length);



                int followingRingCount = multiPatch.get_FollowingRingCount(beginningRing);

                Trace.WriteLine("BeginningRing[" + i + "].FollowingRingCount = " + followingRingCount);



                IRing[] followingRingArray = new IRing[followingRingCount];



                geometryBridge.QueryFollowingRings(multiPatch, beginningRing, ref followingRingArray);



                for (int j = 0; j < followingRingArray.Length; j++)

                {

                    IRing followingRing = followingRingArray[j];

                    Trace.WriteLine("BeginningRing[" + i + "].FollowingRing[" + j + "].MultiPatchRingType = " + GetMultiPatchRingType(multiPatch, followingRing));

                    Trace.WriteLine("BeginningRing[" + i + "].FollowingRing[" + j + "].IsBeginningRing = " + IsBeginningRing(multiPatch, followingRing));

                    Trace.WriteLine("BeginningRing[" + i + "].FollowingRing[" + j + "].Length = " + followingRing.Length);



                    IRing foundBeginningRing = multiPatch.FindBeginningRing(followingRing);

                    Trace.WriteLine("BeginningRing[" + i + "].FollowingRing[" + j + "].FoundBeginningRing.MultiPatchRingType = " + GetMultiPatchRingType(multiPatch, foundBeginningRing));

                    Trace.WriteLine("BeginningRing[" + i + "].FollowingRing[" + j + "].FoundBeginningRing.IsBeginningRing = " + IsBeginningRing(multiPatch, foundBeginningRing));

                    Trace.WriteLine("BeginningRing[" + i + "].FollowingRing[" + j + "].FoundBeginningRing.Length = " + foundBeginningRing.Length);

                }

            }

        }



        private static esriMultiPatchRingType GetMultiPatchRingType(IMultiPatch multiPatch, IRing ring)

        {

            bool isBeginningRing = false;



            esriMultiPatchRingType multiPatchRingType = multiPatch.GetRingType(ring, ref isBeginningRing);



            return multiPatchRingType;

        }



        private static bool IsBeginningRing(IMultiPatch multiPatch, IRing ring)

        {

            bool isBeginningRing = false;



            esriMultiPatchRingType multiPatchRingType = multiPatch.GetRingType(ring, ref isBeginningRing);



            return isBeginningRing;

        }



        private static IGeometry GetMultiPatchGeometry()

        {

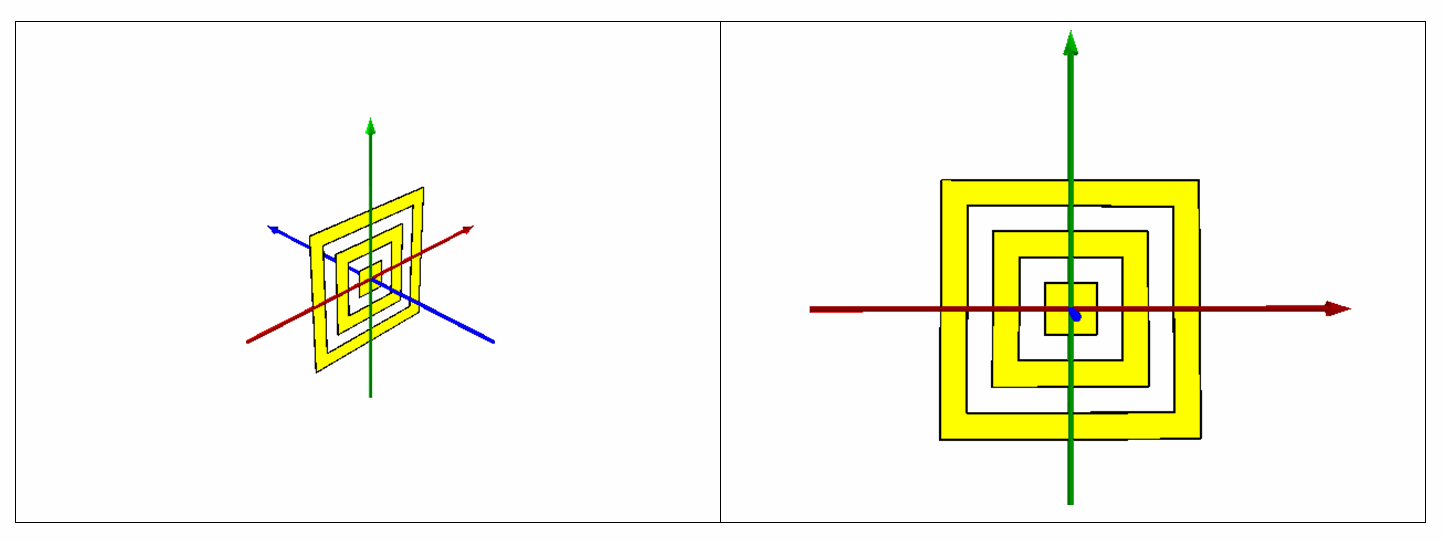

            //RingGroup: Upright Square Composed Of Multiple Exterior Rings And Multiple Interior Rings



            IGeometryCollection multiPatchGeometryCollection = new MultiPatchClass();



            IMultiPatch multiPatch = multiPatchGeometryCollection as IMultiPatch;



            //Exterior Ring 1



            IPointCollection exteriorRing1PointCollection = new RingClass();

            exteriorRing1PointCollection.AddPoint(ConstructPoint3D(5, 0, -5), ref _missing, ref _missing);

            exteriorRing1PointCollection.AddPoint(ConstructPoint3D(-5, 0, -5), ref _missing, ref _missing);

            exteriorRing1PointCollection.AddPoint(ConstructPoint3D(-5, 0, 5), ref _missing, ref _missing);

            exteriorRing1PointCollection.AddPoint(ConstructPoint3D(5, 0, 5), ref _missing, ref _missing);

            exteriorRing1PointCollection.AddPoint(ConstructPoint3D(5, 0, -5), ref _missing, ref _missing);



            multiPatchGeometryCollection.AddGeometry(exteriorRing1 as IGeometry, ref _missing, ref _missing);



            multiPatch.PutRingType(exteriorRing1, esriMultiPatchRingType.esriMultiPatchOuterRing);



            //Interior Ring 1



            IPointCollection interiorRing1PointCollection = new RingClass();

            interiorRing1PointCollection.AddPoint(ConstructPoint3D(-4, 0, -4), ref _missing, ref _missing);

            interiorRing1PointCollection.AddPoint(ConstructPoint3D(4, 0, -4), ref _missing, ref _missing);

            interiorRing1PointCollection.AddPoint(ConstructPoint3D(4, 0, 4), ref _missing, ref _missing);

            interiorRing1PointCollection.AddPoint(ConstructPoint3D(-4, 0, 4), ref _missing, ref _missing);

            interiorRing1PointCollection.AddPoint(ConstructPoint3D(-4, 0, -4), ref _missing, ref _missing);



            multiPatchGeometryCollection.AddGeometry(interiorRing1 as IGeometry, ref _missing, ref _missing);



            multiPatch.PutRingType(interiorRing1, esriMultiPatchRingType.esriMultiPatchInnerRing);



            //Exterior Ring 2



            IPointCollection exteriorRing2PointCollection = new RingClass();

            exteriorRing2PointCollection.AddPoint(ConstructPoint3D(3, 0, -3), ref _missing, ref _missing);

            exteriorRing2PointCollection.AddPoint(ConstructPoint3D(-3, 0, -3), ref _missing, ref _missing);

            exteriorRing2PointCollection.AddPoint(ConstructPoint3D(-3, 0, 3), ref _missing, ref _missing);

            exteriorRing2PointCollection.AddPoint(ConstructPoint3D(3, 0, 3), ref _missing, ref _missing);

            exteriorRing2PointCollection.AddPoint(ConstructPoint3D(3, 0, -3), ref _missing, ref _missing);



            multiPatchGeometryCollection.AddGeometry(exteriorRing2 as IGeometry, ref _missing, ref _missing);



            multiPatch.PutRingType(exteriorRing2, esriMultiPatchRingType.esriMultiPatchOuterRing);



            //Interior Ring 2



            IPointCollection interiorRing2PointCollection = new RingClass();

            interiorRing2PointCollection.AddPoint(ConstructPoint3D(-2, 0, -2), ref _missing, ref _missing);

            interiorRing2PointCollection.AddPoint(ConstructPoint3D(2, 0, -2), ref _missing, ref _missing);

            interiorRing2PointCollection.AddPoint(ConstructPoint3D(2, 0, 2), ref _missing, ref _missing);

            interiorRing2PointCollection.AddPoint(ConstructPoint3D(-2, 0, 2), ref _missing, ref _missing);

            interiorRing2PointCollection.AddPoint(ConstructPoint3D(-2, 0, -2), ref _missing, ref _missing);



            multiPatchGeometryCollection.AddGeometry(interiorRing2 as IGeometry, ref _missing, ref _missing);



            multiPatch.PutRingType(interiorRing2, esriMultiPatchRingType.esriMultiPatchInnerRing);



            //Exterior Ring 3



            IPointCollection exteriorRing3PointCollection = new RingClass();

            exteriorRing3PointCollection.AddPoint(ConstructPoint3D(1, 0, -1), ref _missing, ref _missing);

            exteriorRing3PointCollection.AddPoint(ConstructPoint3D(-1, 0, -1), ref _missing, ref _missing);

            exteriorRing3PointCollection.AddPoint(ConstructPoint3D(-1, 0, 1), ref _missing, ref _missing);

            exteriorRing3PointCollection.AddPoint(ConstructPoint3D(1, 0, 1), ref _missing, ref _missing);

            exteriorRing3PointCollection.AddPoint(ConstructPoint3D(1, 0, -1), ref _missing, ref _missing);



            multiPatchGeometryCollection.AddGeometry(exteriorRing3 as IGeometry, ref _missing, ref _missing);



            multiPatch.PutRingType(exteriorRing3, esriMultiPatchRingType.esriMultiPatchOuterRing);



            return multiPatchGeometryCollection as IGeometry;

        }



        public static IPoint ConstructPoint3D(double x, double y, double z)

        {

            IPoint point = ConstructPoint2D(x, y);

            point.Z = z;



            return point;

        }



        public static IPoint ConstructPoint2D(double x, double y)

        {

            IPoint point = new PointClass();

            point.PutCoords(x, y);



            return point;

        }



See Also

IMultiPatch Interface

.NET Samples

3D multipatch examples (Code Files: CompositeExamples RingGroupExamples)
