ArcObjects Library Reference (Geometry)

IConstructPoint.ConstructAngleIntersection Method

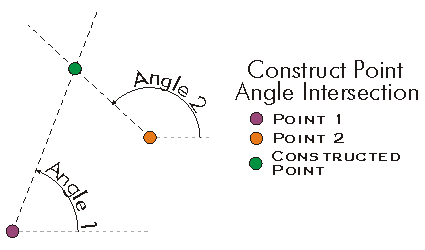

Constructs the point of intersection between two lines defined by the input points and angles (in radians).

[Visual Basic .NET]
Public Sub ConstructAngleIntersection ( _
    ByVal p1 As IPoint, _
    ByVal angle1 As Double, _
    ByVal p2 As IPoint, _
    ByVal angle2 As Double _
)
[C#]
public void ConstructAngleIntersection (
    IPoint p1,
    double angle1,
    IPoint p2,
    double angle2
);
[C++]
HRESULT ConstructAngleIntersection(
  IPoint* p1,
  double angle1,
  IPoint* p2,
  double angle2
);
[C++]

Parameters

p1

  p1 is a parameter of type IPoint

angle1   angle1 is a parameter of type double p2

  p2 is a parameter of type IPoint

angle2   angle2 is a parameter of type double

Product Availability

Available with ArcGIS Engine, ArcGIS Desktop, and ArcGIS Server.

Remarks


Angles are specified as geometric angles measured counterclockwise from the positive x axis of the Cartesian coordinate system. All angles are specified in radians .

ConstructAngleIntersection Example
[C#]

        //This method constructs a new point as intersection of 2 lines
        public void ConstructAngleIntersection()
        {
            IPoint fromPoint = new PointClass();
            fromPoint.PutCoords(0, 0);
            IPoint toPoint = new PointClass();
            toPoint.PutCoords(100, 0);
            double angle1Rad = 45 * 2 * Math.PI / 360;
            double angle2Rad = 135 * 2 * Math.PI / 360;
            IConstructPoint constructionPoint = new PointClass();
            constructionPoint.ConstructAngleIntersection(fromPoint, angle1Rad, toPoint, angle2Rad);
            IPoint outPutPoint = constructionPoint as IPoint;
            System.Windows.Forms.MessageBox.Show("Output point : " + outPutPoint.X + " , " + outPutPoint.Y);
        }

[Visual Basic .NET]

    '+++ Construct a new point as intersection of 2 lines

    Public Sub t_ConstructAngleIntersection()
        On Error GoTo Errorhandler
        Dim pPoint1 As ESRI.ArcGIS.Geometry.IPoint
        Dim pPoint2 As ESRI.ArcGIS.Geometry.IPoint
        Dim pPoint As ESRI.ArcGIS.Geometry.IPoint
        Dim dAngle1 As Long
        Dim dAngle2 As Long

        pPoint1 = New ESRI.ArcGIS.Geometry.Point
        pPoint2 = New ESRI.ArcGIS.Geometry.Point

        pPoint1.PutCoords(0, 0)
        pPoint2.PutCoords(100, 0)

        dAngle1 = 45
        dAngle2 = 135

        pPoint = ptConstructAngleIntersection(pPoint1, dAngle1, pPoint2, dAngle2)
        MsgBox("x,y = " & pPoint.X & "," & pPoint.Y)
        Exit Sub

Errorhandler:
        MsgBox(Err.Number & "..." & Err.Description)
        Exit Sub

    End Sub

    Public Function ptConstructAngleIntersection(ByVal pPt1 As ESRI.ArcGIS.Geometry.IPoint, ByVal dAngle1 As Long, ByVal pPt2 As ESRI.ArcGIS.Geometry.IPoint, ByVal dAngle2 As Long) As ESRI.ArcGIS.Geometry.IPoint
        Const PI As Double = 3.14159265358979
        Dim dAngleRad1 As Double
        Dim dAngleRad2 As Double

        Dim pCPoint As ESRI.ArcGIS.Geometry.IConstructPoint
        pCPoint = New ESRI.ArcGIS.Geometry.Point

        dAngleRad1 = dAngle1 * 2 * PI / 360 ' Conversion degrees to radians
        dAngleRad2 = dAngle2 * 2 * PI / 360

        pCPoint.ConstructAngleIntersection(pPt1, dAngleRad1, pPt2, dAngleRad2)
        ptConstructAngleIntersection = pCPoint
    End Function

See Also

IConstructPoint Interface

.NET Samples

Angle Angle shape constructor (Code Files: AngleAngleCstr)
