ArcObjects Library Reference (Editor)

IEditProperties.StretchGeometry Property

Indicates if the edit sketch is stretched when one of its vertices is moved.

[Visual Basic .NET]
Public Property StretchGeometry As Boolean
[C#]
public bool StretchGeometry {get; set;}

Product Availability

Available with ArcGIS Desktop.

Remarks

This property determines whether or not the edit sketch is stretched proportionally when a vertex is moved. The following diagrams illustrate this point better. In both cases, the upper right vertex was moved.

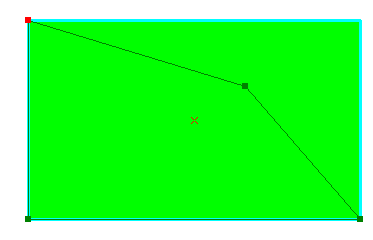

Moving a vertex with StretchGeometry set to True:



Moving a vertex with StrechGeometry set to False:


[C#]
/// /// This routine toggles the Stretch Geometry proportional property based on the current setting.
/// This setting is available on the Editing Options General tab.
///
public void ToggleStretchGeometry()
{
//get editor extension
UID editorUID = new UIDClass();    editorUID.Value = "esriEditor.Editor";
IEditor editor = m_application.FindExtensionByCLSID(editorUID) as IEditor; IEditProperties editProperties = editor as IEditProperties;
//switch the setting on or off based on the previous value
editProperties.StretchGeometry = (!editProperties.StretchGeometry);
}
